Connecting

Custom-made products - Connecting

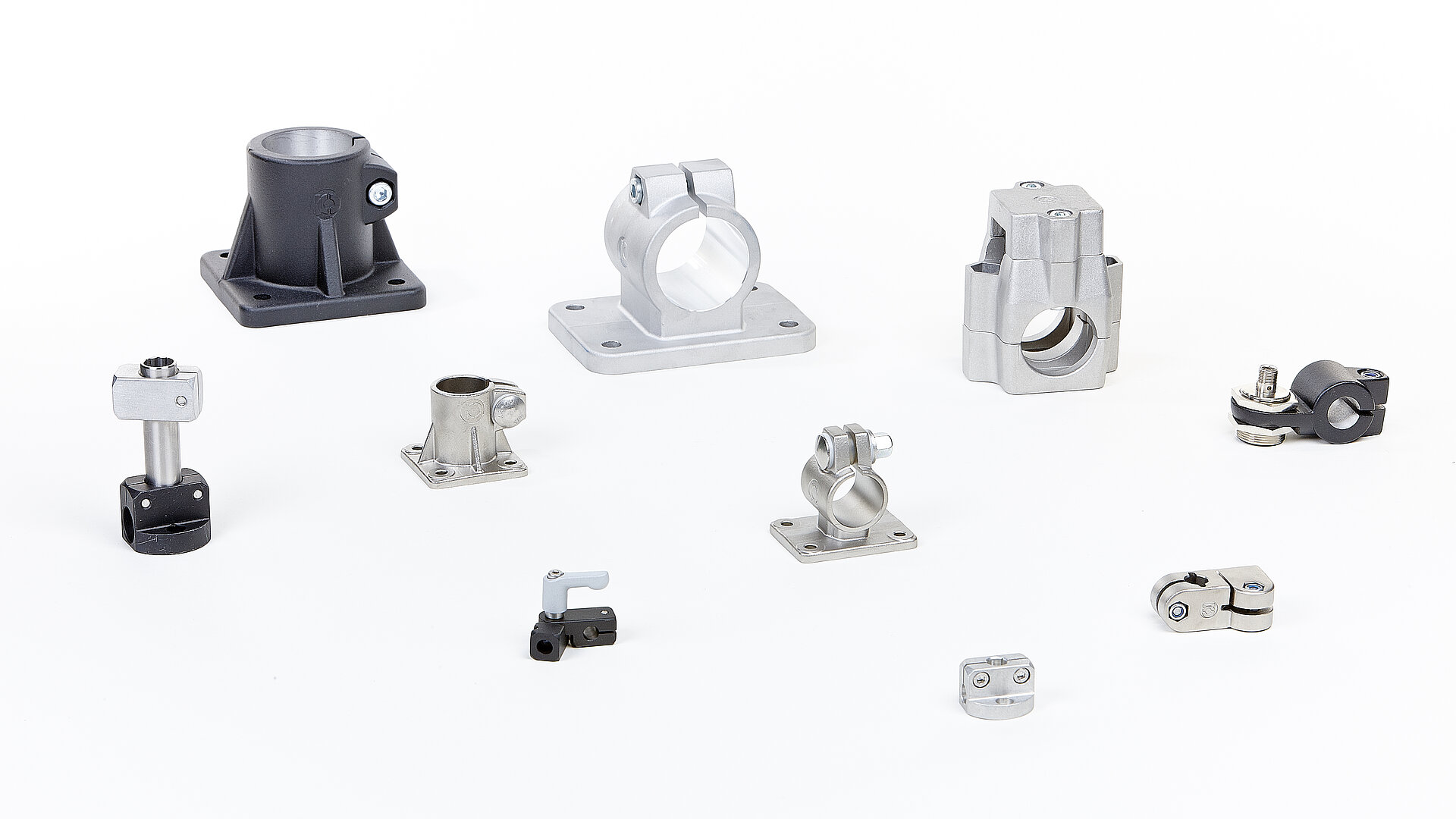

INOCON specializes in pipe connectors. The high-strength components, made of stainless aluminum or, alternatively, robust stainless steel, fit all standard cross-sections of round and square pipes. The clamping force of a single screw is sufficient to create a reliable connection. The pipe connectors are non-slip and durable and are resistant to vibrations. The wide selection of connector types ensures maximum flexibility in a modular system.
Below, we present our custom-made products for this application.

Base clamp connectors with elongated holes in the base plate:
Through mechanical post-processing, it is possible to incorporate customer-specific drilling patterns into the base plates of our clamp connectors. Elongated holes in an X or O arrangement facilitate assembly at the point of use.

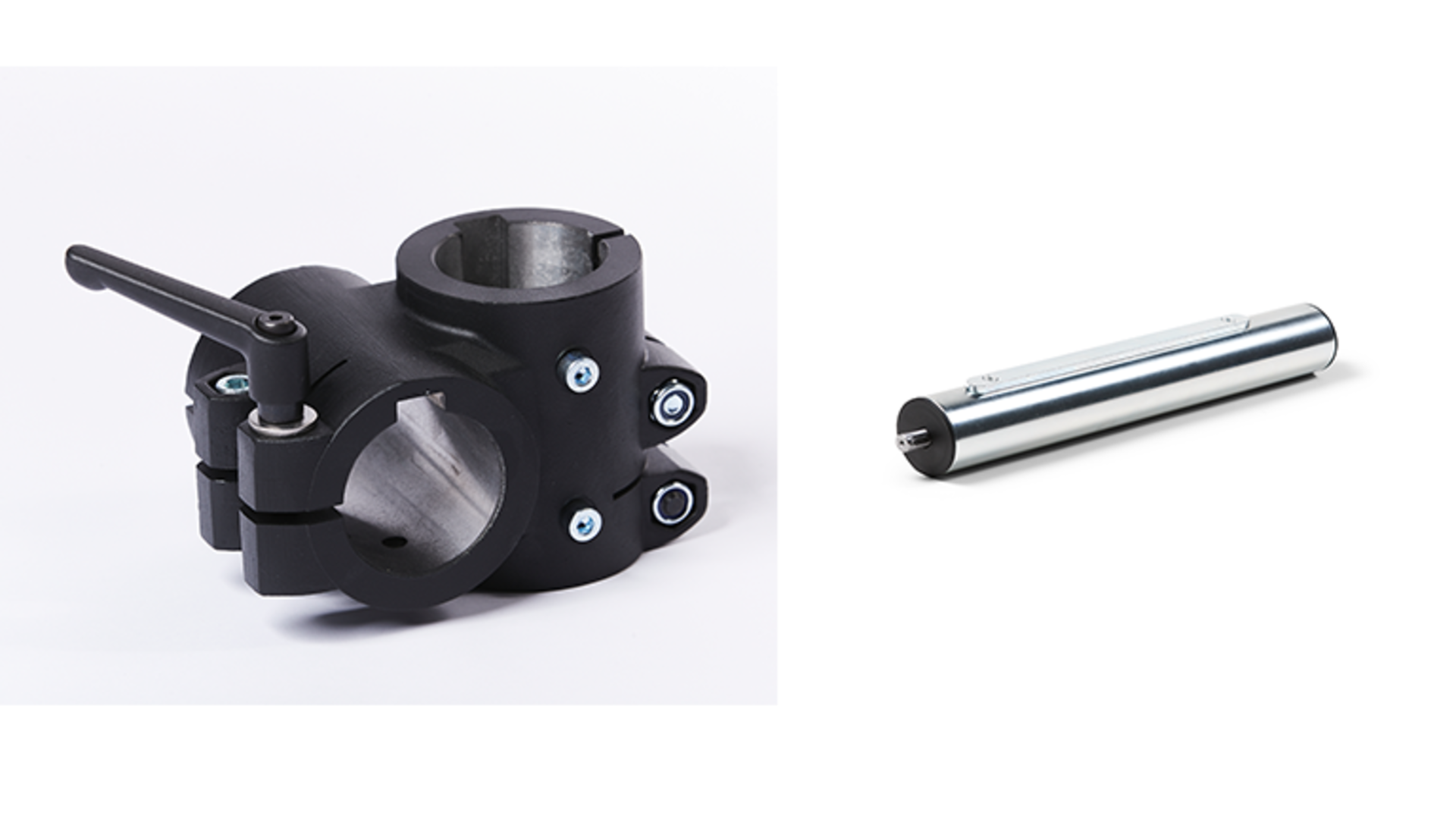

Cross-axis slide with keyway mount:
If large torsional forces occur under high load, this linear unit with additional feather key and a slide with keyway mount ensures safe operation. The single-tube linear unit is equipped with an additional keyway as an anti-rotation device.

Joint clamp connectors made of cast steel with a galvanized surface:
In addition to our standard materials aluminum and stainless steel, we can also manufacture clamp connectors made of cast steel if required by the customer.

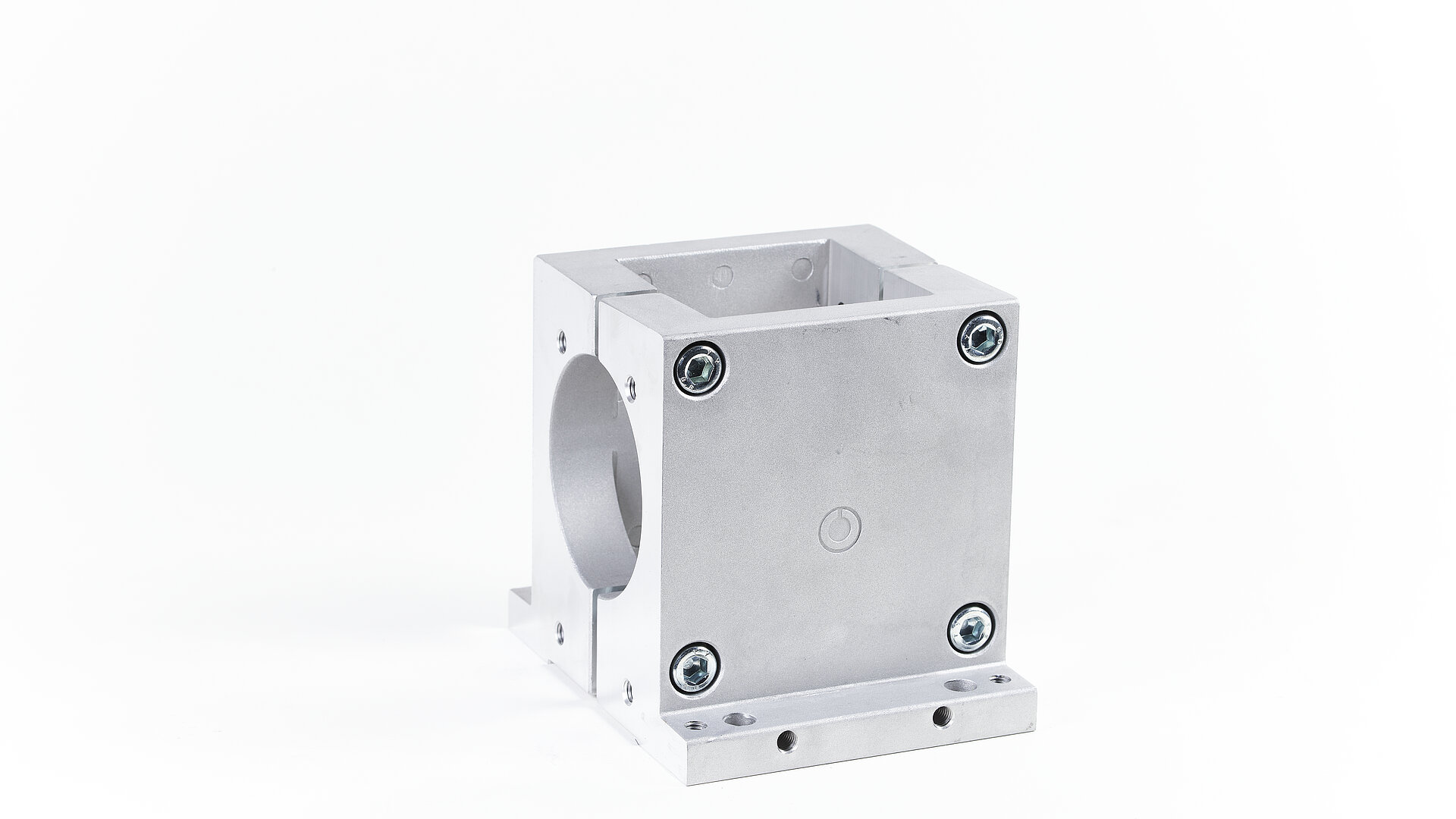

Base-flanged-clamp connector for tube diameter 80 mm.

Monitor mounting kits with VESA adapter plate:
Wall and floor mounting for monitors, cameras, and sensors in industrial environments.
Universally mountable, rotatable, swiveling, and tiltable with just a few components for ergonomic adjustment.

Multi-part stainless steel cross clamp connectors D20/V16 and D20/V16+D12/V10, for holding guides in beverage bottling machines.

Parallel Clamp Connectors PS

These elements of the double-tube linear units are suitable for connecting and guiding two pipes at a fixed distance from each other. Therefore, these parallel clamp connectors are available for tube diameters of 18, 30, 40, 50, and 60 mm.l-Klemmverbinder für die Rohrdurchmesser 18, 30, 40, 50 und 60 mm verfügbar.

Modular System for customized workstations:

Configure your perfect assembly workstation. Height, depth, and width according to your specifications, with shelves above and below, as well as swivel and fixed casters with or without locking brakes. Swivel arms for picking containers are also possible, as is the preparation for integrated electrical installations such as sockets, switches, and lights.

Inch clamp connectors, American dimensions, some available from stock, some manufactured to customer specifications:

1/2 inch = 12.70 mm
5/8 inch = 15.88 mm
3/4 inch = 19.05 mm
1 inch = 25.4 mm
5/4 inch = 31.75 mm
3/2 inch = 38.10 mm
7/4 inch = 44.45 mm
2 inch = 50.80 mm
3/2 inch = 63.50 mm

European inch diameters can also be offered through mechanical modification.
