1C Clamp mountings
BG Base clamp mountings, aluminum

BG Base clamp mountings, aluminum

Product description

Base clamp mountings BG Base are made of drawn round aluminum profiles and have slitted clamping points machined by cutting methods.

The base with two bores serves as an interface or for fastening the clamp mounting to the place of use.

The bore distance m is the same for all clamp mountings and the available accessories with fastening options to ensure simple replacement and combination.

The bores at the clamping points are situated in a plane and arranged in a T-shape, parallel / perpendicular to the fastening plane. They receive rods and tubes with round or square cross-sections via the additionally incorporated square bore.

For clamping, stainless steel socket cap screws DIN 912-A2-70 combined with the clamping thread reduce the bore cross-section. For regular tool-free clamping, adjustable hand lever sets are available as accessories under the designation HK.

RoHS-compliant product

On request

  • Clamping point with special diameter
  • Screw points with hex head screws
  • Surface anodized in colors
  • Retaining magnet

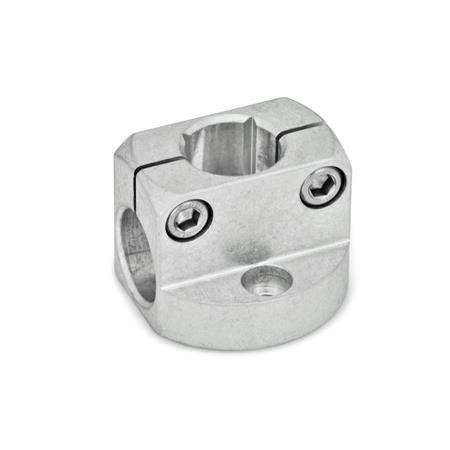

 BG Base clamp mountings, aluminum Surface: G - Aluminum tumbled, matt
 BG Base clamp mountings, aluminum Surface: S - Aluminum, black anodized
Article options / Table
Show columns
d1
Bore
b1b2d2d3
Clamping
thread
d4
Pass-through bore
l1l2l3l4ms
Square
Accessories
Hand lever set HK
for
d3
B 8142931,5M 4M 42077322-M4-14
B 10163538M 5M 524882,5278M5-16
B 12163538M 5M 525882,52710M5-16
B 15204145M 6M 630101043212M6-20
B 16204145M 6M 6311010432-M6-20
B 20254450M 6M 63512,512,56,53616M6-25
Build & Price
Bore d1
Surface
Part number
BG-B8-G
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
