1C Clamp mountings
SP Fastening lugs for sensors and reflectors, plastic

SP Fastening lugs for sensors and reflectors, plastic

Original design
MSX.
Product description

Fastening lugs SP are made of polyamide by injection molding and have a slitted clamping point.

The lug is situated in a plane with and parallel to the clamping point bore, which receives rods and tubes with round cross-sections or also square cross-sections via the additionally incorporated square bore. A variety of types make fastening lugs suitable for all manner of uses.

Stainless steel screws and nuts reduce the bore cross-section for clamping.

The exceptionally lightweight plastic elements are well-suited for use in corrosive environments.

RoHS-compliant product

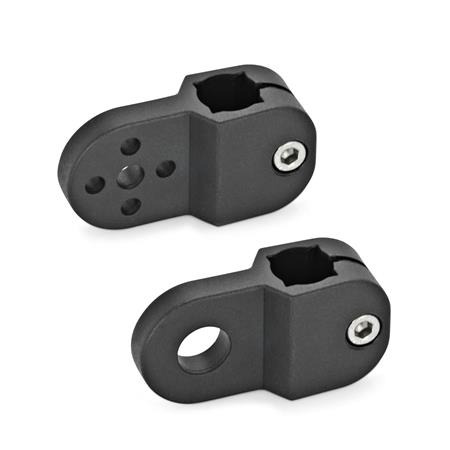

 SP Fastening lugs for sensors and reflectors, plastic
 SP Fastening lugs for sensors and reflectors, plastic Type: A - For sensor mounting
 SP Fastening lugs for sensors and reflectors, plastic Type: B - For sensor mounting
 SP Fastening lugs for sensors and reflectors, plastic Type: C - With Bore for Countersunk Screw M6
 SP Fastening lugs for sensors and reflectors, plastic Type: D - For reflector mounting
 SP Fastening lugs for sensors and reflectors, plastic Type: E - For reflector mounting

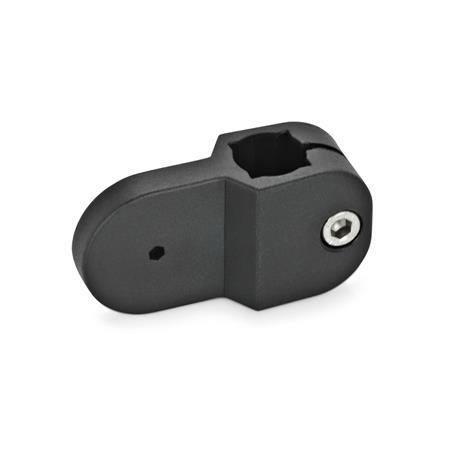

 SP Fastening lugs for sensors and reflectors, plastic Type: F - For inserting specific drillings
Article options / Table

Type

AFor sensor mounting
BFor sensor mounting
CWith Bore for Countersunk Screw M6
DFor reflector mounting
EFor reflector mounting
FFor inserting specific drillings
Show columns
d
Bore
kl1l2l3ms
Square
B 102158,530825V 8
B 122158,530825V 10
B 142158,530825V 12
Build & Price
Bore d
Type






Part number
SP-B10-A
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

SP-B10-ASP-B10-BSP-B10-CSP-B10-DSP-B10-ESP-B10-FSP-B12-ASP-B12-BSP-B12-CSP-B12-DSP-B12-ESP-B12-FSP-B14-ASP-B14-BSP-B14-CSP-B14-DSP-B14-ESP-B14-F
