RS
Construction tubes
aluminum, steel, stainless steel
Construction tubes RS are intended for assembly using clamps and can be combined with these to build tube constructions of all types.
The tubes are available from stock in the standard lengths indicated in the table. On request, individual lengths up to 6000 mm are possible, including single part orders. The tolerances of the outer dimension are selected to ensure secure clamping of the tube clamp.
On request
Individual lengths up to 6000 mm
Surface
AB Aluminum plate finish

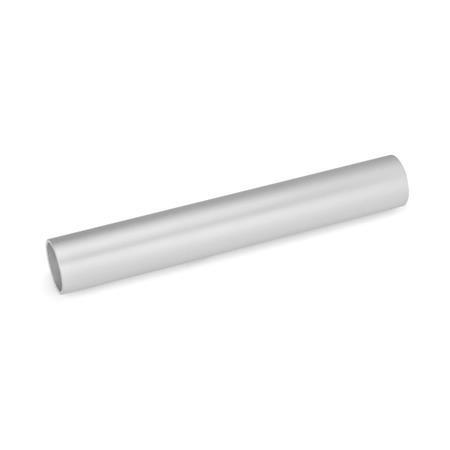

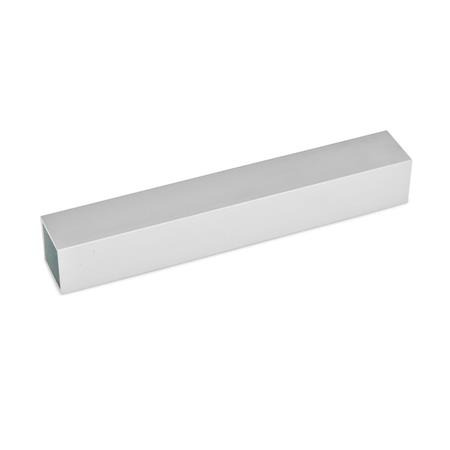

AL Aluminum anodized, natural color

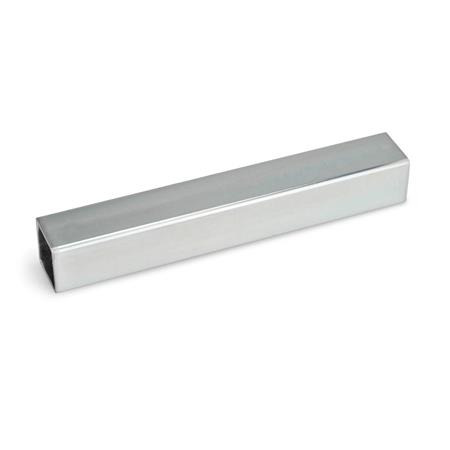

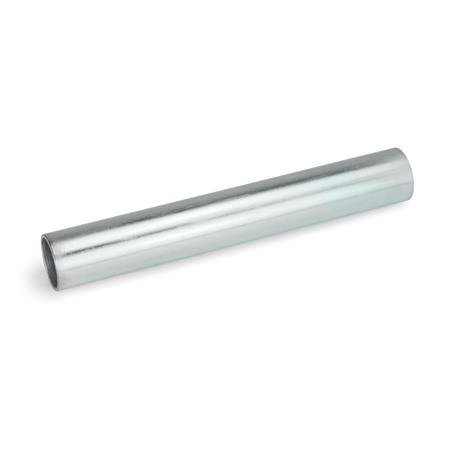

ST Steel, zinc-plated

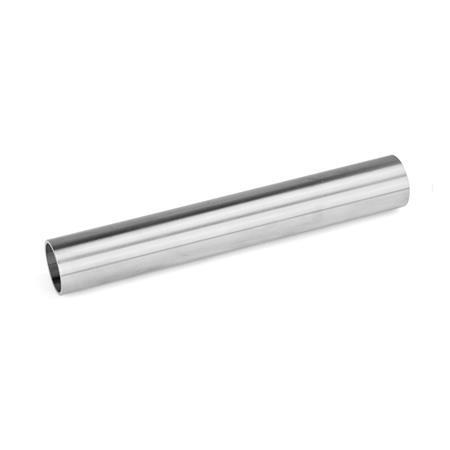

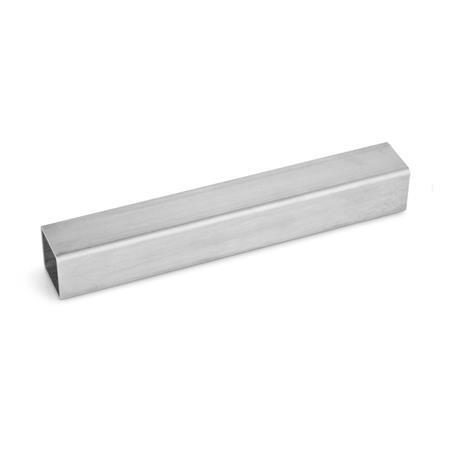

ED Stainless steel
Show columns
d1 Diameter s1 Square w1 w2 l ±0.5 Length d2 s2
D 10
D 12
D 14
D 15
D 16
D 18
D 20
D 25
D 30
D 32
D 35
D 40
D 42*
D 45*
D 48*
D 50
D 50**
D 60
V 20
V 25
V 30
V 35
V 40
V 45
V 50
1,5
2
3
4
5
2
3
200
500
1000
2000
7
9
11
12
13
15
16
21
26
28
31
34
36
39
42
44
50
16
21
26
31
34
39
44
D 10 - 1,5 - 200 500 1000 2000 7 -
D 12 - 1,5 - 200 500 1000 2000 9 -
D 14 - 1,5 - 200 500 1000 2000 11 -
D 15 - 1,5 - 200 500 1000 2000 12 -
D 16 - 1,5 - 200 500 1000 2000 13 -
D 18 - 1,5 - 200 500 1000 2000 15 -
D 20 V 20 2 2 200 500 1000 2000 16 16
D 25 V 25 2 2 200 500 1000 2000 21 21
D 30 V 30 2 2 200 500 1000 2000 26 26
D 32 - 2 - 200 500 1000 2000 28 -
D 35 V 35 2 2 200 500 1000 2000 31 31
D 40 V 40 3 3 200 500 1000 2000 34 34
D 42* - 3 - 200 500 1000 2000 36 -
D 45* V 45 3 3 200 500 1000 2000 39 39
D 48* - 3 - 200 500 1000 2000 42 -
D 50 V 50 3 3 200 500 1000 2000 44 44
D 50** - 4 - 200 500 1000 2000 42 -
D 60 - 5 - 200 500 1000 2000 50 -
Filter combination produces no result.
On request, individual lengths up to 6000 mm are possible, including single part orders. *Only surface AB, AL and ST | **Only surface ST and ED
Diameter d1
Square s1
Wall thickness w1
Surface
Length l
Diameter d1
Square s1
Wall thickness w1
Surface
Length l
Part number
RS-V20-2-AL-200
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS (R estriction o f (the use of certain) h azardous s ubstances)).
