YTS T-angle gears for single tube linear units

YTS T-angle gears for single tube linear units

Product description

T-angle gears YTS transmit rotational movements between multiple linear, drive or transfer units. The input and output sides are offset by 90°, and the rotational axes have a common point of intersection.

The angle gear is clamped radially to the nominal diameter of a linear unit using the slitted clamping point. The bevel gear wheels are fixed in place on the shaft journal using parallel keys and grub screws. Removing the plastic caps offers good access, making it easier to adjust the engagement of the bevel gear wheels.

T-angle gears can be ordered with various features for different applications based on the types listed in the table. This makes it possible to combine various linear, drive or transfer units together.

The housing is made of die-cast aluminum, while selectively hardened steel is used for the bevel gear wheels. The drive unit is made of chrome-plated steel, and the tube stoppers are made of plastic.

RoHS-compliant product

On request

  • Angle gear for nominal diameter Ø18 and Ø60
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

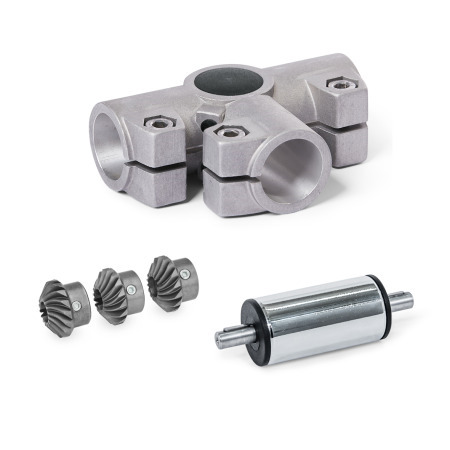

 YTS T-angle gears, for single tube linear units Surface: 8 - Blasted, matt, blasted, matt
Type: B - Angle gear box + bevel gear wheel set + drive unit (steel chrome plated)

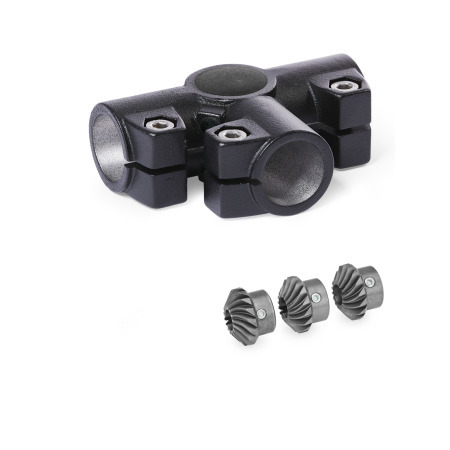

 YTS T-angle gears, for single tube linear units Surface: 2 - Black, textured powder-coated, RAL 9005
Type: A - Angle gear box + bevel gear wheel set

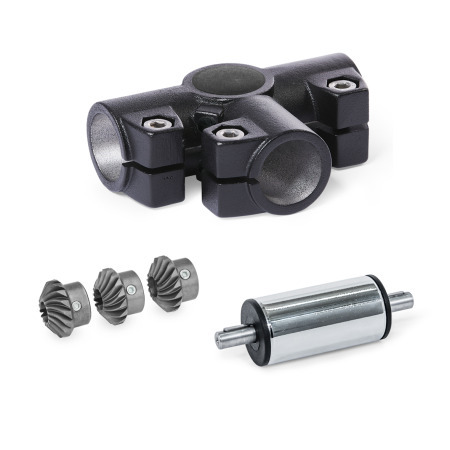

 YTS T-angle gears, for single tube linear units Surface: 2 - Black, textured powder-coated, RAL 9005
Type: B - Angle gear box + bevel gear wheel set + drive unit (steel chrome plated)

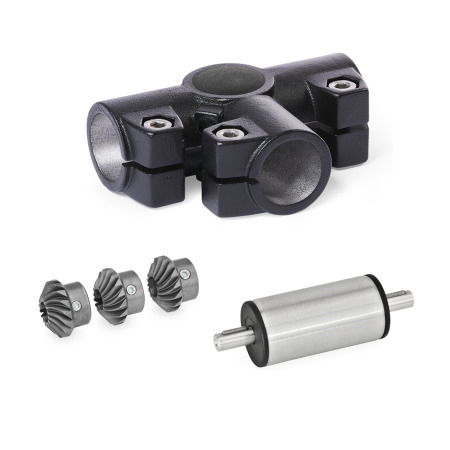

 YTS T-angle gears, for single tube linear units Surface: 2 - Black, textured powder-coated, RAL 9005
Type: C - Angle gear box + bevel gear wheel set + drive unit (stainless steel)

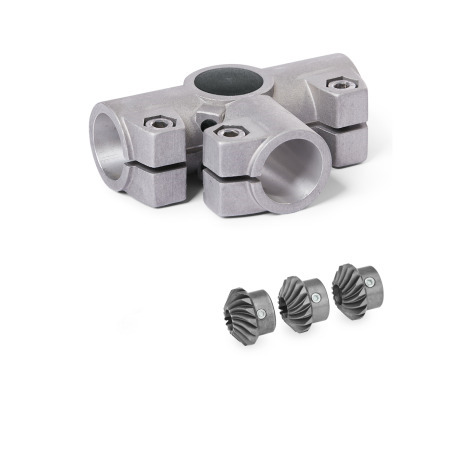

 YTS T-angle gears, for single tube linear units Surface: 8 - Blasted, matt, blasted, matt
Type: A - Angle gear box + bevel gear wheel set

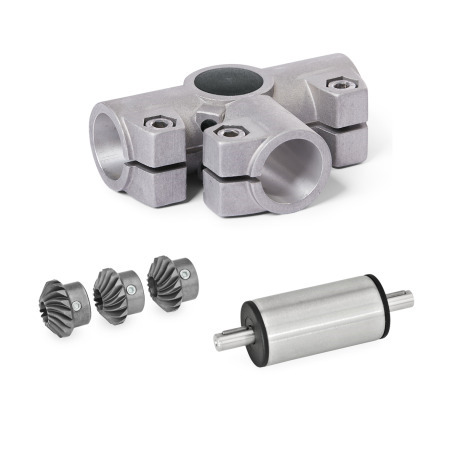

 YTS T-angle gears, for single tube linear units Surface: 8 - Blasted, matt, blasted, matt
Type: C - Angle gear box + bevel gear wheel set + drive unit (stainless steel)
Article options / Table

Type

AAngle gear box + bevel gear wheel set
BAngle gear box + bevel gear wheel set + drive unit (steel chrome plated)
CAngle gear box + bevel gear wheel set + drive unit (stainless steel)
Show columns
d1
Linear unit nominal diameter
d2d3l1l2 l3l4 mHex socket
cap screws
304088085163560M8-25
406512135,51241772103M10-50
506512135,51241872103M10-50
Build & Price
Nominal diameter d1
Type



Surface
Part number
YTS-30-A-8
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
