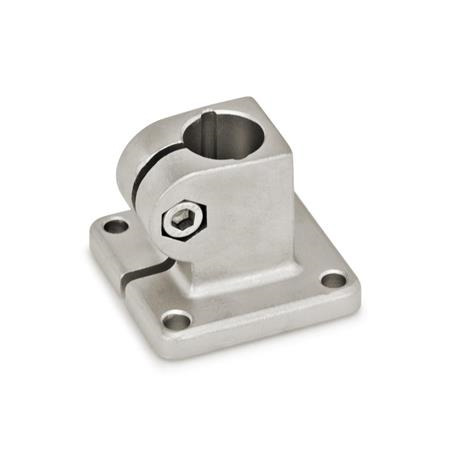

BK Base clamps with four fastening bores, stainless steel

BK Base clamps with four fastening bores, stainless steel

Product description

Base clamps BK of precision-cast stainless steel have a slitted clamping point machined by cutting methods.

The base flange with four bores serves as an interface or for fastening the clamp to the place of use.

The bore at the clamping point is arranged perpendicular to the face of the flange. It receives typically available rods and tubes with full surface contact over the entire cross-section of the bore.

At the screw point, a hex socket cap screw reduces the bore cross-section for clamping.

RoHS-compliant product

On request

  • Clamping point with special diameter
  • Screw point with hex head screw
  • Surface ball-burnished or powder-coated in other RAL colors
 BK Base clamps, with four fastening bores, stainless steel
Article options / Table

Screw point

2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
d2k
Clamping
length
l1l2tx1x2y1y2Hex socket
cap screws
B 125,54034,525750385038M6-20
B 145,54034,525750385038M6-20
B 155,54034,525750385038M6-20
B 165,54034,525750385038M6-20
B 185,54034,525750385038M6-20
B 205,54034,525750385038M6-20
Build & Price
Specifications

Bore d1
Screw point

Material

Part number
BK-B12-2-ED
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
