SKQ Sensor mounts, aluminum

SKQ Sensor mounts, aluminum

Product description

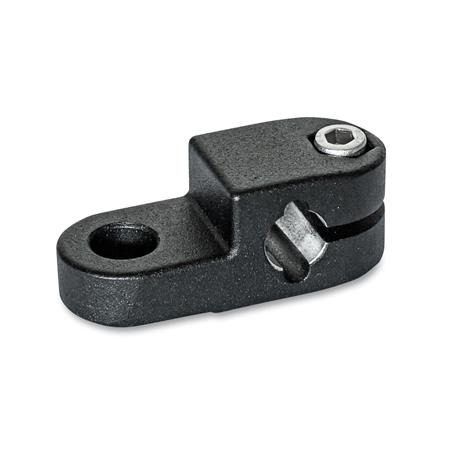

Sensor mounts SKQ of die-cast aluminum have a slitted clamping point and a sensor bore, both machined by cutting methods.

The sensor bore allows attachment of a sensor with male thread. It is offset in the plane and situated at an angle of 90° to the clamping point bore, which receives typically available rods and tubes with full contact over the entire cross-section.

At the screw point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

Accessory

  • Adjustable hand levers HSK

On request

  • Stainless steel version
  • Clamping point / Sensor bore with special diameter
  • Screw point with hex head screws
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 SKQ Sensor mounts, aluminum
Article options / Table

Screw point

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
for clamping Ø
d2
Bore
for sensor
b
Swivel
width
d3kl1l2mtHex socket
cap screw
Accessories
recom. hand lever
HSK for
lever length
l3
B 12B 12B 18252725642529,511M6-2063
B 14B 12B 18252725642529,511M6-2063
B 15B 12B 18252725642529,511M6-2063
B 16B 12B 18252725642529,511M6-2063
B 18B 12B 18252725642529,511M6-2063
Build & Price
Bore d1
Bore d2
Screw point


Surface
Part number
SKQ-B12-B12-2-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
