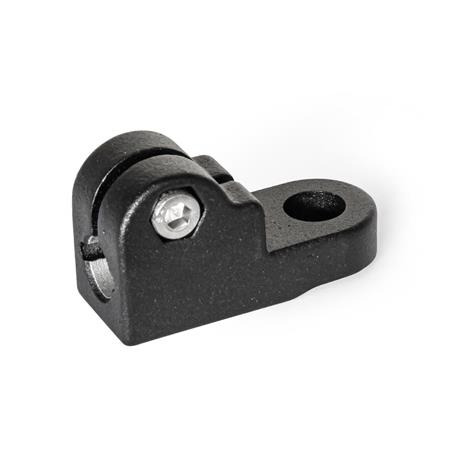

SKT Sensor mounts, aluminum

SKT Sensor mounts, aluminum

Product description

Sensor mounts SKT of die-cast aluminum have a slitted clamping point and a sensor bore, both machined by cutting methods.

The sensor bore allows attachment of a sensor with male thread. It is centered and forms a T-shape relative to the clamping point bore, which receives typically available rods and tubes with full contact over the entire cross-section.

At the screw point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-
operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Stainless steel version
  • Clamping point / Sensor bore with special diameter
  • Screw point with hex head screws
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 SKT Sensor mounts, aluminum
Article options / Table

Screw point

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
for clamping Ø
d2
Bore
for sensor
b
Swivel
width
d3kl1l2mtHex socket
cap screws
Accessories
recom. hand lever
HSK for z
lever length
l2
B 12B 12B 18252731,56434,529,511M6-2063
B 14B 12B 18252731,56434,529,511M6-2063
B 15B 12B 18252731,56434,529,511M6-2063
B 16B 12B 18252731,56434,529,511M6-2063
B 18B 12B 18252731,56434,529,511M6-2063
Build & Price
Bore d1
Bore d2
Screw point


Surface
Part number
SKT-B12-B12-2-2
