BM Base clamps, multi-piece, aluminum

BM Base clamps, multi-piece, aluminum

Product description

Base clamps BM of die-cast aluminum have a split clamping point with a round or square cross-section that has been partially machined by cutting methods.

The bore at the clamping point is arranged perpendicular to the face of the flange. It receives typically available construction tubes via multiple ribs in the cross-section of the bore.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

Accessory

  • Adjustable hand levers HSK

On request

  • Clamping point with special diameter
  • Screw points with hex head screws or mixed screw / adjustable hand lever element
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

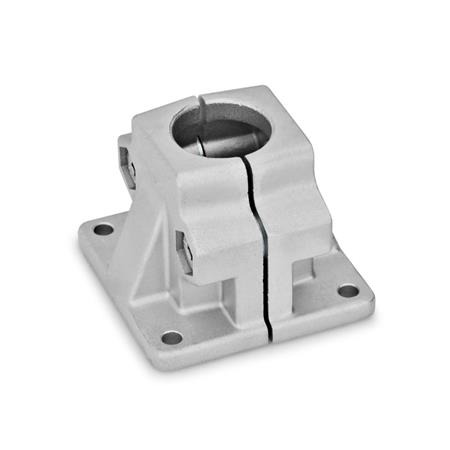

 BM Base clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 8 - blasted, matt

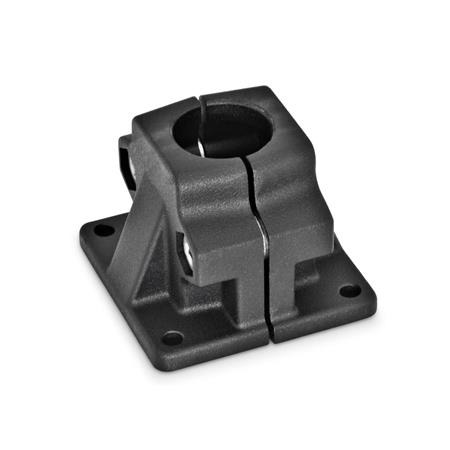

 BM Base clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 2 - Black, textured powder-coated, RAL 9005

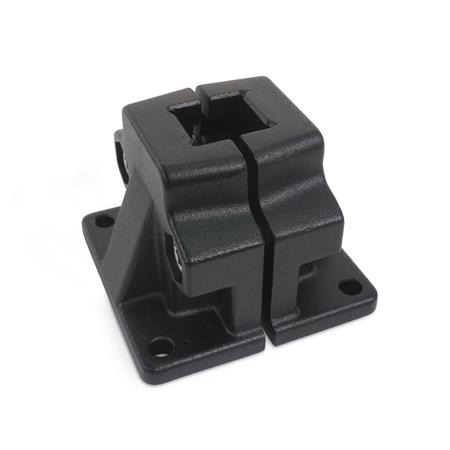

 BM Base clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 2 - Black, textured powder-coated, RAL 9005

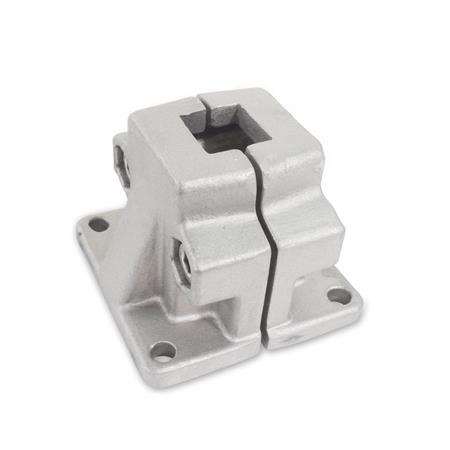

 BM Base clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 8 - blasted, matt
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated / grub screw DIN 914 steel, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
s
Square
d2k
Clamping
length
l1l2tx1x2y1y2Hex socket
cap screws
Accessories
recom. hand lever
HSK for z
lever length
l3
B 20V 207586946775607560M8-3578
B 25V 257586946775607560M8-3578
B 30V 307586946775607560M8-3578
B 40V 4011919870141159011990M10-6092
B 42-11919870141159011990M10-6092
B 45V 4511919870141159011990M10-6092
B 48-11919870141159011990M10-6092
B 50V 5011919870141159011990M10-6092
Build & Price
Square s
Bore d1
Screw points


Surface
Part number
BM-B20-2-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
