ES Angle clamps aluminum

ES Angle clamps aluminum

Product description

Angle clamps ES of die-cast aluminum have cylindrical clamping points machined by cutting methods. Two clamping points have a slitted cross-section and one has no clamping slit.

All bores of the clamping points are arranged at an angle of 90° to each other. The slitted bores lie in a plane, while the bore cross-section without clamping slit is perpendicular to this plane. All bores receive typically available construction tubes with full surface contact over the entire cross-section.

At the screw points, hex socket cap screws or adjustable clamping levers reduce the slitted bore cross-section. Grub screws with cup points act radially on the cross-section of the bore for clamping without a clamping slit. Centering bores on the clamped tube prevent pressure points and enable precise positioning.

Clamping levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with a clamping lever is lower due to the shorterclamping lever length.

RoHS-compliant product

On request

  • Clamping points with different diameters d1 and d2 or special diameter
    • Screw points with hex head screws or mixed screw / clamping lever elements
    • Surface ball-burnished, anodized or powder-coated in other RAL colors

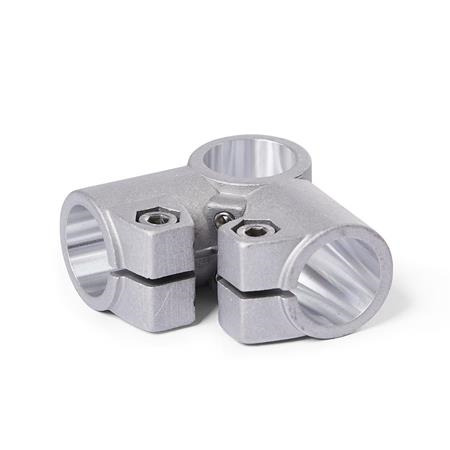

 ES Angle clamps, aluminum Surface: 8 - Blasted, matt, blasted, matt

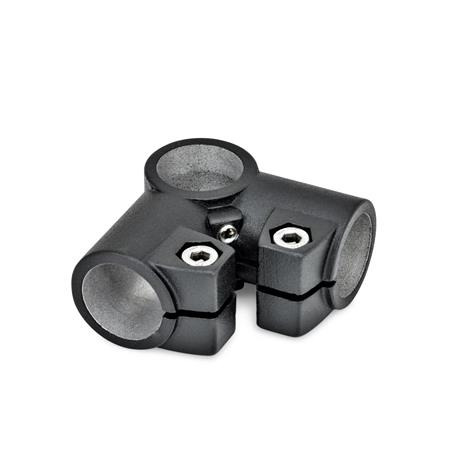

 ES Angle clamps, aluminum Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated / grub screw DIN 914 steel, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d3d4l1l2mHex socket
cap screw
recom. hand lever
HSK for z
lever length
B 20B 2040M 8805260M8-25-
B 25B 2540M 8805260M8-2578
B 30B 3040M 8805260M8-2578
B 40B 4065M 10135,577,5103M10-50-
B 42B 4265M 10135,577,5103M10-50-
B 45B 4565M 10135,577,5103M10-5092
B 48B 4865M 10135,577,5103M10-5092
B 50B 5065M 10135,577,5103M10-5092
Build & Price
Bore d1
Bore d2
Screw points

Part number
