FE Flanged clamps, with four fastening bores, stainless steel

FE Flanged clamps, with four fastening bores, stainless steel

Product description

Flanged clamps FE of matt blasted precision-cast stainless steel have a slitted clamping point machined by cutting methods.

The flange with four bores serves as an interface or for fastening the clamp to the place of use.

The bore at the clamping point is arranged in the plane parallel to the face of the flange. It receives typically available construction tubes with full surface contact over the entire cross-section of the bore.

At the screw point, a carriage bolt and a cap nut or an adjustable hand lever reduces the bore cross-section for clamping. Type B is equipped with seals at the screw point.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

Accessory

  • Stainless steel adjustable hand levers HEK

On request

  • Clamping point with special diameter
  • Screw point with hex head screw

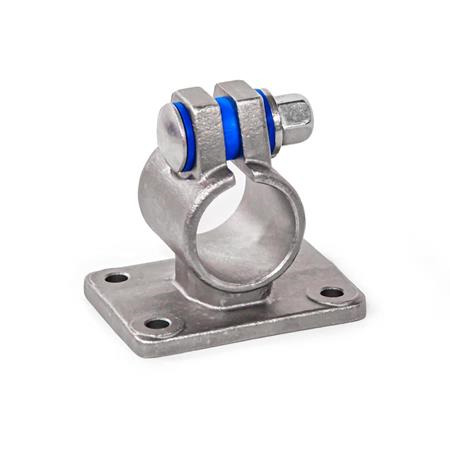

 FE Flanged clamps, with four fastening bores, stainless steel Type: B - With seals (sealing washer polyacetal POM, blue, spacer ring silicone 40 ... 60 Shore A, blue)

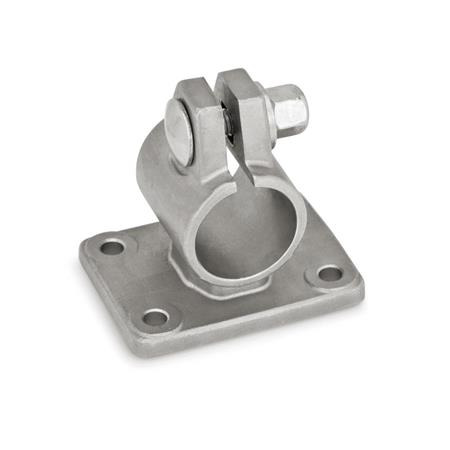

 FE Flanged clamps, with four fastening bores, stainless steel Type: A - Without seals
Article options / Table

Type

AWithout seals
BWith seals (sealing washer polyacetal POM, blue, spacer ring silicone 40 ... 60 Shore A, blue)

Screw point

4Cap nut stainless steel DIN 917-A2 and carriage bolt stainless steel DIN 603-A2
Show columns
d1
Bore
bd2d3k
Clamping
length
l1mtx1x2y1y2Cap nutAccessories
recom. hand lever
HEK for z
lever length
l2
B 30226,537406530752357053M 878
B 40288,550,25686427,63785210882M 1092
B 503010,7606598,5509926212898M 1092
Build & Price
Bore d1
Type


Screw point

Part number
FE-B30-A-4
