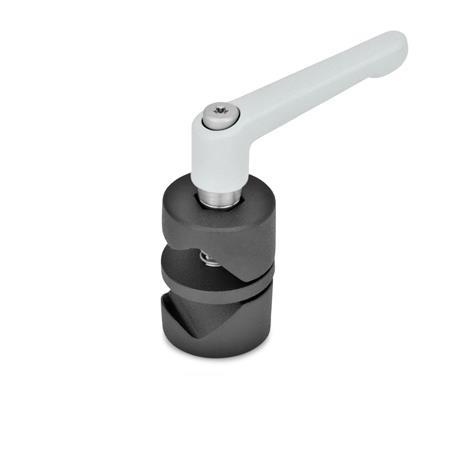

GMV Joint clamps, swiveling, aluminum

d₁ Clamping diameter	d₂ Clamping diameter	d₃	d₄	l₁	l₂	l₃	l₄	l₅	m

8	8	M 6	28	33	35	45	14	5	13
10	10	M 8	32	45	45	63	20	5	15
12	12	M 8	36	47	45	63	21	5	17
14	14	M 8	46	57	55	78	25,5	6	20
15	15	M 10	46	57	55	78	25,5	6	21
16	16	M 10	46	57	55	78	25,5	6	22
18	18	M 10	56	63	55	78	28,5	6	24
20	20	M 10	56	65	55	78	28,5	8	28

Part number

GMV-8-8-2-G

If there is no weight available, please contact our customer support:

phone: +49 (0)2226 - 90 98 7 - 0

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Save as favourite

GMV Joint clamps, swiveling, aluminum

GMV Joint clamps, swiveling, aluminum

On request

Downloads

Type

2	Hex socket cap screw stainless steel (DIN 912-A2-70 and hex nut DIN 934-A2)
8	with adjustable hand lever, lever zinc-die-cast textured powder-coated, Silver RAL 9006 for surface 2 / G \| Lever stainless steel precision-cast AISI CF-8, blasted, matt for surface ED, Threaded insert stainless steel AISI 303, screw A1 and hex nut DIN 934-A2
