KMU Cross clamps, multi-piece, unequal bore dimensions, aluminum

KMU Cross clamps, multi-piece, unequal bore dimensions, aluminum

Product description

Cross clamps KMU of die-cast aluminum have split clamping points with different round or square cross-section that have been partially machined by cutting methods.

The bores of the clamping points are offset in the plane and arranged at an angle of 90°. They receive typically available construction tubes via multiple ribs in the cross-section of the bores.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping points with different diameters d1, d2, s1 and s2 or special diameter
  • Screw points with hex head screws or mixed screw / hand lever elements
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

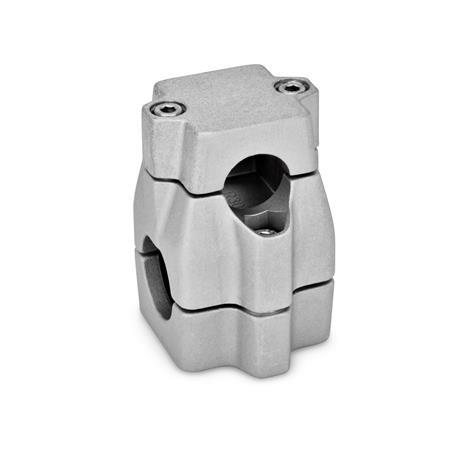

 KMU Cross clamps, multi-piece, unequal bore dimensions, aluminum Surface: 8 - Blasted, matt, blasted, matt

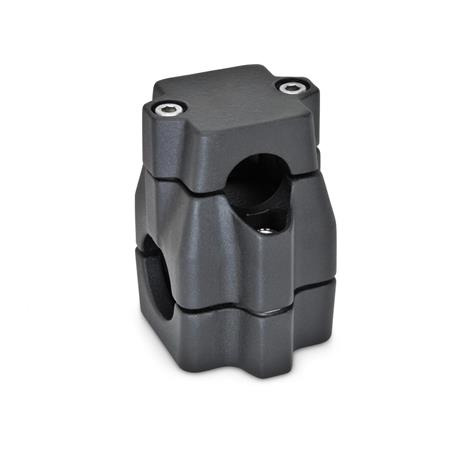

 KMU Cross clamps, multi-piece, unequal bore dimensions, aluminum Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
k2l1l2l3mHex socket
cap screws

Hex socket
cap screws

recom. hand lever
HSK for z1
lever length
HSK for z1
lever length
B 30V 30B 40V 406076120799855M8-50M10-557892
B 30V 30B 50V 506076120799855M8-50M10-557892
B 40V 40B 50V 506076120799855M8-50M10-557892
Build & Price
Bore d1
Square s1
Square s2
Bore d2
Clamping length k1
Screw points

Part number
