1B Tube clamps
LST Swivel clamps, aluminum

LST Swivel clamps, aluminum

Product description

Swivel clamps LST of die-cast aluminum have a slitted clamping point machined with cutting methods. The fastening lug is smooth, has a centering ring or has crown serration that may be countersunk or raised.

The fastening lug is centered and forms a T-shape relative to the axis of the bore, which receives typically available construction tubes with full contact over the entire cross-section.

The screw point of the fastening lug receives a hex head or hex socket cap screw or a lock nut for fastening any additional parts. At the clamping point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping.

By combining swivel clamps that have identical fastening lugs and corresponding centering ring serration, it is possible to assemble any type of joint clamp.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping point with special diameter
  • Screw point with hex head screw
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 LST Swivel clamps, aluminum Type: AV - With external serration
Surface: 8 - Blasted, matt, blasted, matt
 LST Swivel clamps, aluminum Type: AV - With external serration
Surface: 2 - Black, textured powder-coated, RAL 9005

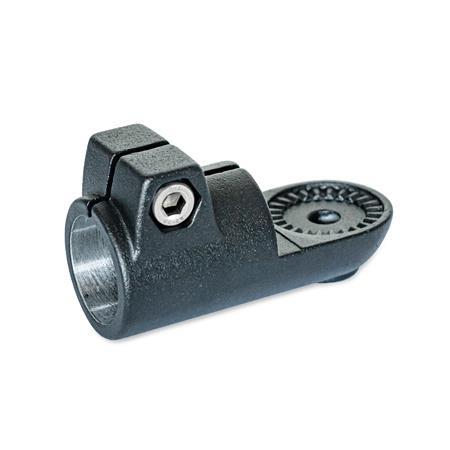

 LST Swivel clamps, aluminum Type: IV - With internal serration
Surface: 2 - Black, textured powder-coated, RAL 9005

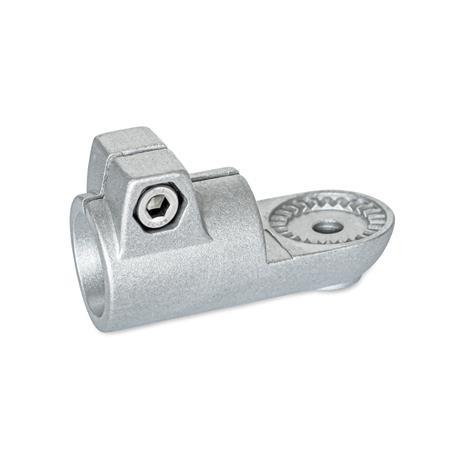

 LST Swivel clamps, aluminum Type: IV - With internal serration
Surface: 8 - Blasted, matt, blasted, matt
 LST Swivel clamps, aluminum Type: MZ - With centering step
Surface: 2 - Black, textured powder-coated, RAL 9005
 LST Swivel clamps, aluminum Type: MZ - With centering step
Surface: 8 - Blasted, matt, blasted, matt
 LST Swivel clamps, aluminum Type: OZ - Without centring step (smooth)
Surface: 2 - Black, textured powder-coated, RAL 9005
 LST Swivel clamps, aluminum Type: OZ - Without centring step (smooth)
Surface: 8 - Blasted, matt, blasted, matt
Article options / Table

Type

OZWithout centring step (smooth)
MZWith centering step
AVWith external serration
IVWith internal serration

Screw point

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
b
Swivel
width
d2kl1l2mstHex socket
cap screws
Accessories
recom. hand lever
HSK for z
lever length
l3
B 20408,542,59252721320M8-25-
B 25408,542,59252721320M8-2578
B 30408,542,59252721320M8-2578
B 406510,57414877,51151732,5M10-50-
B 426510,57414877,51151732,5M10-50-
B 456510,57414877,51151732,5M10-5092
B 486510,57414877,51151732,5M10-5092
B 506510,57414877,51151732,5M10-5092
Build & Price
Bore d1
Type




Screw point


Surface
Part number
LST-B20-OZ-2-8
