1B Tube clamps

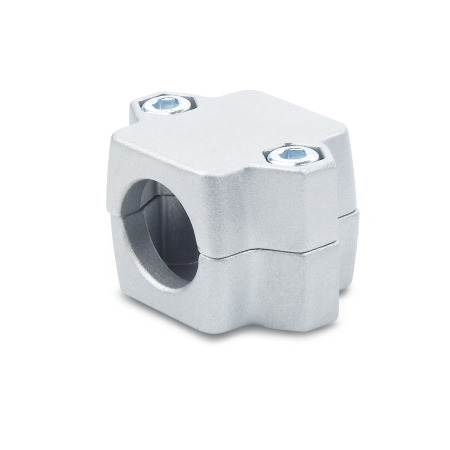

MM Sleeve clamps, multi-piece, aluminum

MM Sleeve clamps, multi-piece, aluminum

Product description

Sleeve clamps MM of die-cast aluminum have a split clamping point with round or square cross-section that has been partially machined by cutting methods.

The bore at the clamping point is arranged in the plane parallel to the outer surfaces of the sleeve halves. It receives typically available construction tubes via multiple ribs in the cross-section of the bore.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping point with special diameter
  • Screw points with hex head screws or mixed screw / adjustable hand lever element
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

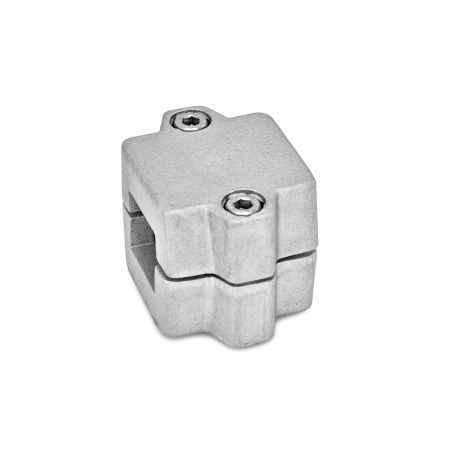

 MM Sleeve clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 8 - Blasted, matt, blasted, matt

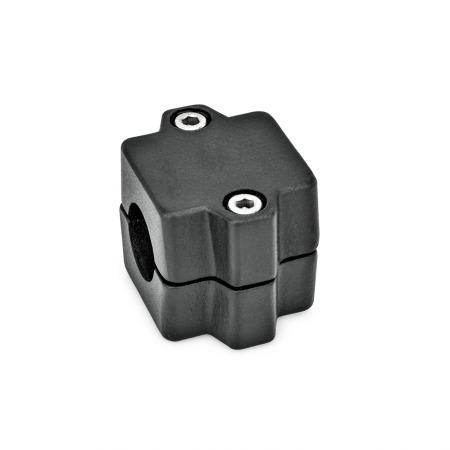

 MM Sleeve clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 2 - Black, textured powder-coated, RAL 9005

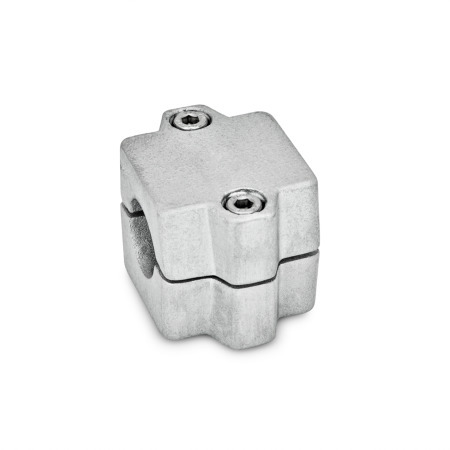

 MM Sleeve clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 8 - Blasted, matt, blasted, matt

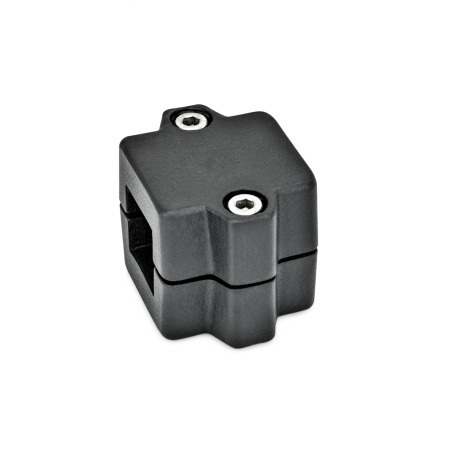

 MM Sleeve clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated / grub screw DIN 914 steel, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
l1l2l3Hex socket
cap screws
recom. hand lever HSK
lever length
B 20V 2050684648M8-3578
B 25V 2550684648M8-3578
B 30V 3050684648M8-3578
B 30V 3060795958M8-5078
B 32-60795958M8-5078
B 35V 3560795958M8-5078
B 40V 4060795958M8-5078
B 40V 4076987073M10-6092
B 42-76987073M10-6092
B 45V 4576987073M10-6092
B 48-76987073M10-6092
B 50V 5076987073M10-6092
B 60V 6090108,58483M10-75-
Build & Price
Square s
Bore d
Clamping length k
Screw points

Part number
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.
