1B Tube clamps
MS.P Sleeve clamps, plastic

MS.P Sleeve clamps, plastic

Original design
code: TCC-SL
Product description

Sleeve clamps MS.P of glass fiber reinforced polyamide have slitted clamping points.

The clamping point bores are situated concentrically on an axis. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore.

Adapter bushings RBS.P can be used to reduce the bore cross-sections to a smaller diameter.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK.P, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

Accessory

Adapter bushings RBS.P
Adjustable hand levers HSK.P

 MS.P Sleeve clamps, plastic Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005

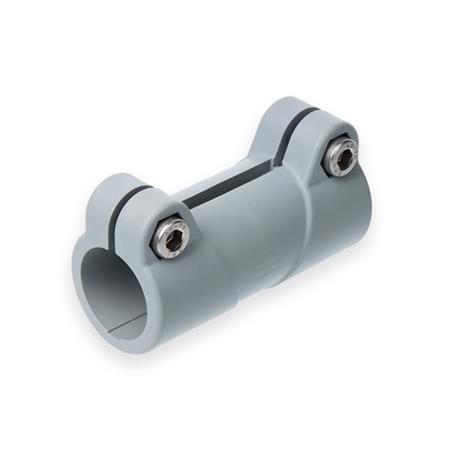

 MS.P Sleeve clamps, plastic Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
Article options / Table

Screw points

2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d
Bore
l1l2l3Hex socket
cap screws
Accessories
recom. hand lever
HSK.P for z
lever length
l4
B 1864,535,529M6-1844 | 63
B 3094,553,542M8-2563 | 78
Build & Price
Bore d
Screw points

Surface
Part number
MS.P-B18-2-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

At present, there is no direct download of 3D CAD data or 2D data for this part. Please send your inquiry by email directly to us. As soon as possible, we will send you the desired CAD-data.

Please add here your E-mail!

MS.P-B18-2-2MS.P-B18-2-4MS.P-B30-2-2MS.P-B30-2-4
