1D Connecting accessories
RBS.P Adapter bushings for plastic tube clamps

RBS.P Adapter bushings for plastic tube clamps

Original design
code: TCC-A
Product description

Adapter bushings RBS.P are made of glass fiber reinforced polyamide.

The adapter bushings can be used to reduce the bore diameters of plastic tube clamps for clamping smaller diameters.

Due to the affixed swivel limiting stop, the adapter bushing cannot rotate or slide inside the tube clamp.

RoHS-compliant product

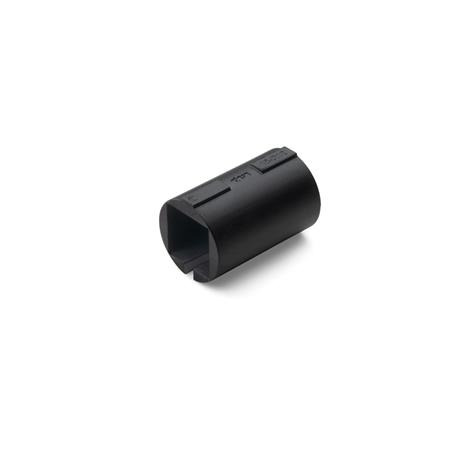

 RBS.P Adapter bushings for plastic tube clamps Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
d<sub>1</sub>: 30
 RBS.P Adapter bushings for plastic tube clamps Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
d<sub>1</sub>: 18

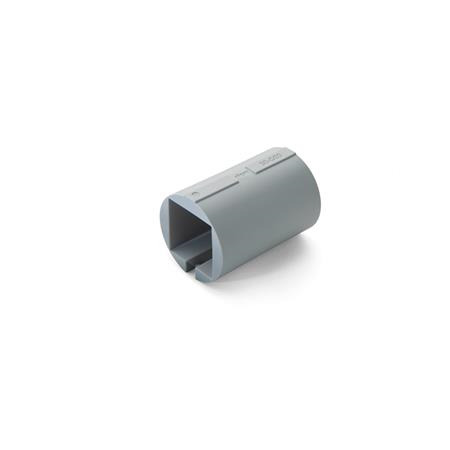

 RBS.P Adapter bushings for plastic tube clamps Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
d<sub>1</sub>: 18
 RBS.P Adapter bushings for plastic tube clamps Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
d<sub>1</sub>: 30
Article options / Table
Show columns
d1
Bore
Clamp connector
d2
Bore
Length l
18B 12B 14B 15B 1629
30B 20B 25--45
Build & Price
Bore d1
Bore d2
Length l
Surface
Part number
RBS.P-18-B12-29-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
