VZH Handwheels for linear units and transfer units

VZH Handwheels for linear units and transfer units

Product description

Handwheels VZH are intended for attachment to linear units as well as drive units and transfer units. The manual rotational movement is transmitted to the spindle or shaft via the keyway, resulting finally in a longitudinal movement of the guide element. A grub screw axially secures the hand wheel against the journal or spindle journal.

Dimensions such as outer diameter and hub bores are matched to the size of the respective linear, drive or transfer unit and can be found in the table. The smaller diameters are designed as disk handwheels and the larger diameters as spoked handwheels.

For each type, the handwheels can be ordered with or without revolving cylindrical handle as well as with a revolving retractable handle.

The handwheels are made of black powder-coated die-cast aluminum. The zinc-plated or black oxide-finished steel spindle parts allow the black plastic handles to rotate.

RoHS-compliant product

On request

Plastic handwheels with Ø 50 for d1 18

 VZH Handwheels for linear units and transfer units Type: R - With rotating handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 80...100 - Disk handwheel
 VZH Handwheels for linear units and transfer units
 VZH Handwheels for linear units and transfer units Type: A - Without handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 125...160 - Spoked handwheel
 VZH Handwheels for linear units and transfer units Type: A - Without handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 50...63 - Disk handwheel
 VZH Handwheels for linear units and transfer units Type: A - Without handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 80...100 - Disk handwheel

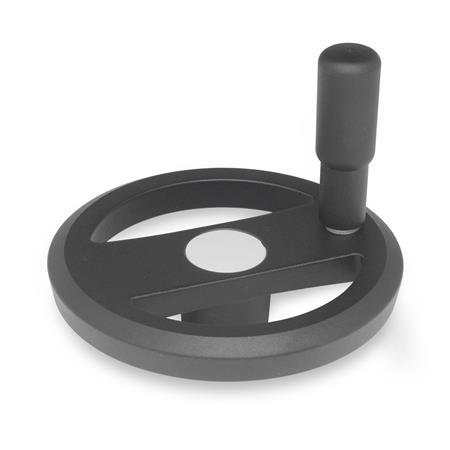

 VZH Handwheels for linear units and transfer units Type: R - With rotating handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 125...160 - Spoked handwheel
 VZH Handwheels for linear units and transfer units Type: R - With rotating handle
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 50...63 - Disk handwheel
 VZH Handwheels for linear units and transfer units Type: RU - With rotating, retractable handle (only available for d2 100-160)
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 125...160 - Spoked handwheel
 VZH Handwheels for linear units and transfer units Type: RU - With rotating, retractable handle (only available for d2 100-160)
Finish: 2 - textured finish, Textured powder-coated, Black , RAL 9005
d<sub>2</sub>: 80...100 - Disk handwheel
Article options / Table

Type

AWithout handle
RWith rotating handle
RUWith rotating, retractable handle (only available for d2 100-160)
Show columns
d1
Linear actuator diameter
d2
Disk handwheel

Spoked handwheel
d3 H7
Bore
l1l2l3l4
18*50-62620--
18*80-62643,5--
30*63-82720--
30100-830583956,5
40100-1230583956,5
40-1251233,561,54560,5
50-1401236,576,54775,5
60-1601439,576,54875,5
* only available in type A and R
Build & Price
d1 (Linear actuator diameter)
d2 (Disk handwheel)
d2 (Spoked handwheel)
Type



Finish
Part number
VZH-18-80-R-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
