1A Compact clamps
BKG Base clamps with grub screw, aluminum

BKG Base clamps with grub screw, aluminum

Product description

Base clamps BKG of die-cast aluminum have a clamping point machined with cutting methods without a clamping slit.

The base flange with four bores serves as an interface or for fastening the clamp to the place of use.

The bore at the clamping point is arranged perpendicular to the face of the flange. It receives typically available structural tubes with full surface contact over the entire cross-section of the bore.

A grub screw with a cup point acts radially at the screw point to reduce the cross-section of the bore. The bushing into which the grub screw is inserted is made of red brass.

A centering bore on the clamped tube prevents pressure points and enables precise positioning.

RoHS-compliant product

On request

  • Clamping point with special diameter
  • Screw point with hex head screw, hex socket cap screw
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

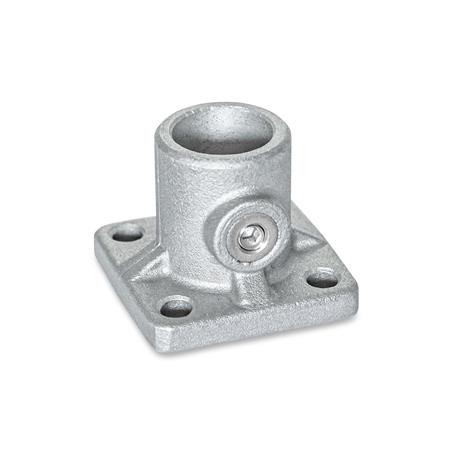

 BKG Base clamps, with grub screw, aluminum Surface: 8 - Blasted, matt, blasted, matt

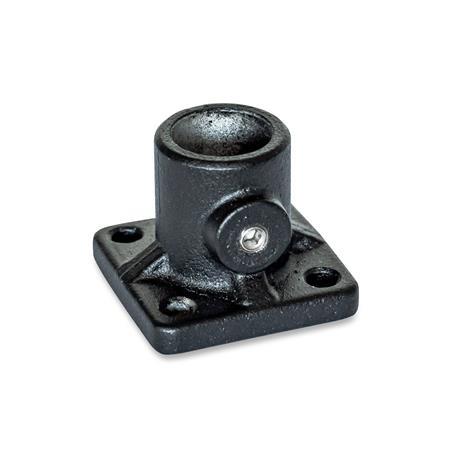

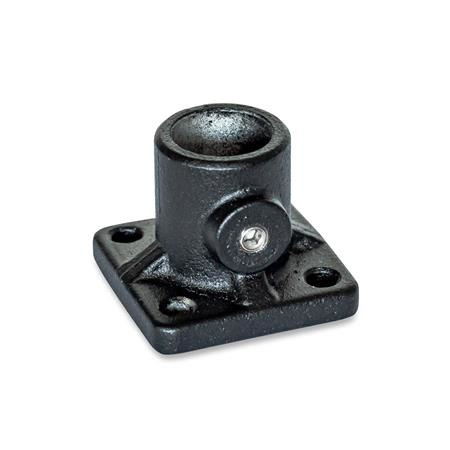

 BKG Base clamps, with grub screw, aluminum Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw point

DGrub screw with stainless steel hex socket (DIN 913)
BGrub screw with zinc-plated hex socket (DIN 913)
Show columns
Length ltx1x2y1y2Grub screw
B 105,53225640284028M6-6
B 125,53225640284028M6-6
B 145,53225640284028M6-6
B 155,53225640284028M6-6
B 165,53225640284028M6-6
B 185,53225640284028M6-6
Build & Price
Bore d1
Screw point

Part number
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
