TK T-clamps aluminum

TK T-clamps aluminum

Product description

T-clamps TK of die-cast aluminum have slitted clamping points machined by cutting methods.

The bores at the clamping points are situated in a plane and arranged in a T-shape. They receive typically available rods and tubes with full surface contact over the entire cross-section of the bore.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, they are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping points with different diameters d1 and d2 or special diameter
  • Screw points with hex head screws or mixed screw / hand lever elements
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 TK T-clamps, aluminum Surface: 8 - Blasted, matt, blasted, matt

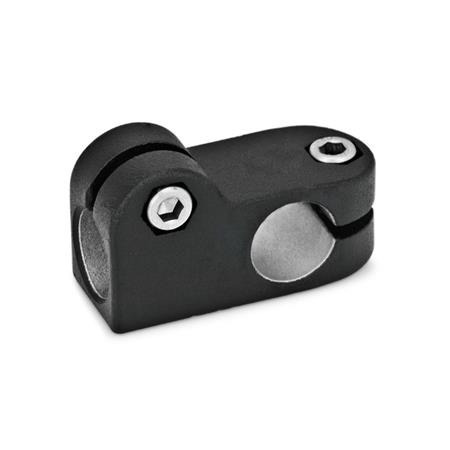

 TK T-clamps, aluminum Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated / grub screw DIN 914 steel, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
l1l2mHex socket
cap screws

z1 / z2
recom. hand lever HSK
for z1
for z2 l3
B 10B 10256134,539M6-20-63
B 12B 12256134,539M6-20-63
B 14B 14256134,539M6-20-63
B 15B 15256134,539M6-20-63
B 16B 16256134,539M6-20-63
B 18B 18256134,539M6-20-63
Build & Price

Bore d1
Bore d2
Screw points

Part number
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
