1B Tube clamps
TS T-clamps, aluminum

TS T-clamps, aluminum

Product description

T-clamps TS of die-cast aluminum have slitted clamping points machined by cutting methods.

The bores at the clamping points are situated in a plane and arranged in a T-shape. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

Accessory

  • Adjustable hand levers HSK

On request

  • Clamping points with different diameters d1 and d2 or special diameter
  • Screw points with hex head screws or mixed screw / adjustable hand lever element
  • Surface ball-burnished, anodized or powder-coated in other RAL colors

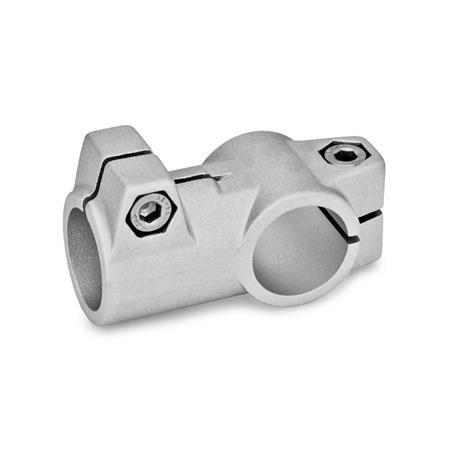

 TS T-clamps, aluminum Surface: 8 - blasted, matt

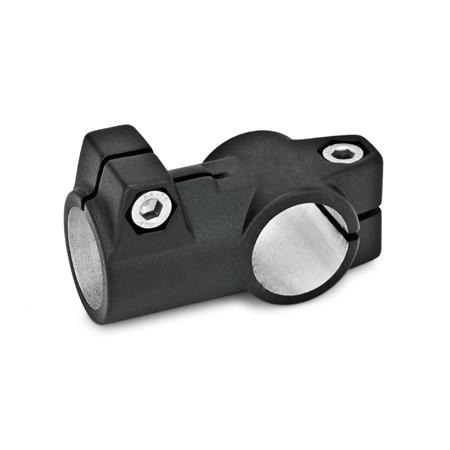

 TS T-clamps, aluminum Surface: 2 - Black, textured powder-coated, RAL 9005
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated / grub screw DIN 914 steel, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
d2
Bore
k1
Clamping
length
k2
Clamping
length
l1l2mHex socket
cap screws

z1
Hex socket
cap screws

z2
Accessories
recom. hand lever
HSK
for z1
l3
for z2 l3
B 20B 204042,5925260M8-25M8-25--
B 25B 254042,5925260M8-25M8-257878
B 30B 304042,5925260M8-25M8-257878
B 30B 3056621306890M10-35M10-35--
B 32B 3256621306890M10-35M10-35--
B 35B 3556621306890M10-35M10-3592-
B 40B 4056621306890M10-35M10-359292
B 40B 40657514877,5103M10-50M10-50--
B 42B 42657514877,5103M10-50M10-5092-
B 45B 45657514877,5103M10-50M10-5092-
B 48B 48657514877,5103M10-50M10-509292
B 50B 50657514877,5103M10-50M10-509292
B 50B 50808017792125M10-50M10-50--
B 60B 60808017792125M10-50M10-5092-
Build & Price
Bore d1
Bore d2
Clamping length k1
Screw points


Surface
Part number
TS-B20-B20-40-2-8
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
