FSZ.P Flanged clamps, plastic

FSZ.P Flanged clamps, plastic

Original design
code: TCC-TB / TCC-TB-VD
Product description

Flanged clamps FSZ.P of glass fiber reinforced polyamide have a slitted clamping point.

The flange with two bores serves as an interface or for fastening the clamp to the place of use. The bore at the clamping point is arranged in the plane parallel to the face of the flange. It receives typically available construction tubes with full surface contact over the entire cross-section of the bore.

Adapter bushings RBS.P can be used to reduce the bore cross-sections to a smaller diameter.

At the screw point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK.P, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

The plastic used in surface VB is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.

RoHS-compliant product

 FSZ.P Flanged clamps, plastic Surface: VB - Polyamide (PA), glass fiber reinforced, Blue RAL 5005 matt, temperature resistant up to 100 °C , FDA compliant plastic granulate, visually detectable, RAL 5005
 FSZ.P Flanged clamps, plastic Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005

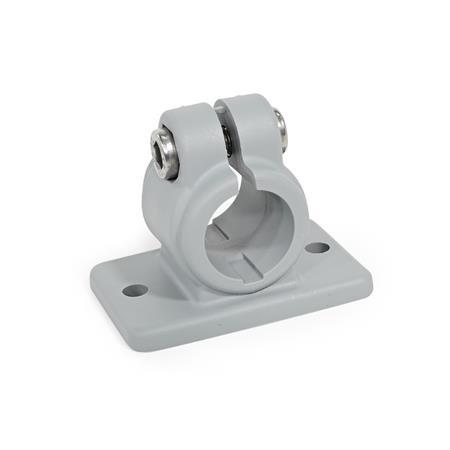

 FSZ.P Flanged clamps, plastic Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
Article options / Table

Screw point

2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
k
Clamping length
d2l1l2mtxy1y2Hex socket
cap screws
Accessories
recom. hand lever
HSK.P for z
lever length
l3
B 18295,2412918534,55240M6-1844 | 63
B 30456,561,54430849,58060M8-2563 | 78
Build & Price
Bore d1
Clamping length k
Screw point

Surface
Part number
FSZ.P-B18-29-2-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

FSZ.P-B18-29-2-4FSZ.P-B18-29-2-2FSZ.P-B18-29-2-VBFSZ.P-B30-45-2-4FSZ.P-B30-45-2-2FSZ.P-B30-45-2-VB
