Product description

Cross clamps KE of matt blasted precision-cast stainless steel have a slitted clamping point machined by cutting methods.

The bores of the clamping points are offset in the plane and arranged at an angle of 90°. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore.

At the screw points, carriage bolts together with cap nuts or adjustable hand levers reduce the bore cross-section for clamping. Type B is equipped with seals at the screw points.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping points with special diameter
  • Screw points with hex head screws or mixed screw / hand lever elements

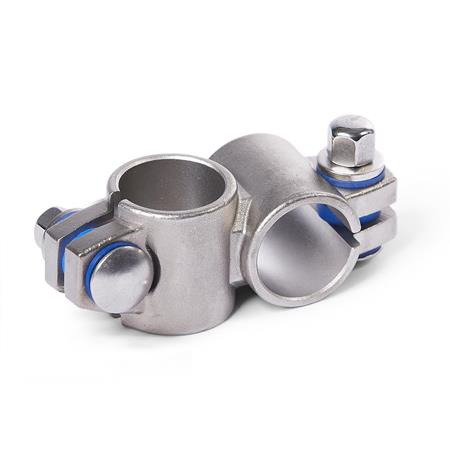

 KE Cross clamps, stainless steel Type: B - With seals (sealing washer polyacetal POM, blue, spacer ring silicone 40 ... 60 Shore A, blue)

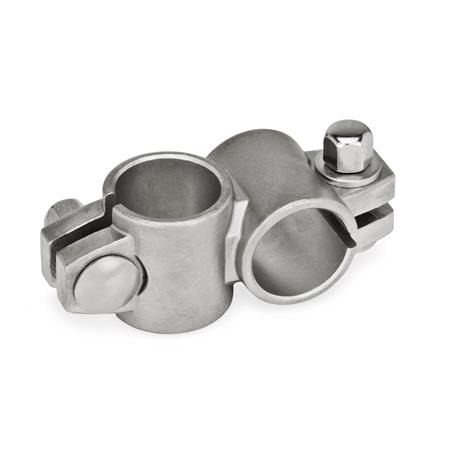

 KE Cross clamps, stainless steel Type: A - Without seals
Article options / Table


AWithout seals
BWith seals (sealing washer polyacetal POM, blue, spacer ring silicone 40 ... 60 Shore A, blue)

Screw points

4Cap nut stainless steel DIN 917-A2 and carriage bolt stainless steel DIN 603-A2
Show columns
l1mCap nutAccessories
recom. hand lever
HEK for z
lever length
B 30B 3022374010433M 878
B 40B 402850,25613345M 1092
B 50B 5030606515053M 1092
