1B Tube clamps
LSF.P Swivel clamps, plastic

LSF.P Swivel clamps, plastic

Original design
code: TCC-PB / TCC-PBF
Product description

Swivel clamps LSF.P of glass fiber reinforced polyamide have a fastening lug that is either smooth or with outer crown toothing.

The fastening lug is centered and situated at an angle of 90° to the flange face.

The flange with bores serves as an interface or for fastening the clamp to the place of use.

The screw point of the fastening lug receives a hex head or hex socket cap screw or a lock nut for fastening any additional parts.

By combining swivel clamps that have identical fastening lugs and corresponding centering ring toothing, it is possible to assemble any type of joint clamp.

RoHS-compliant product

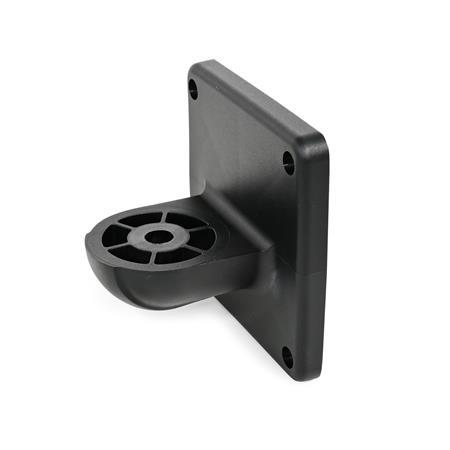

 LSF.P Swivel clamps, plastic Type: AV - With external serration
Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
x<sub>1</sub>: 75
 LSF.P Swivel clamps, plastic Type: AV - With external serration
Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
x<sub>1</sub>: 40

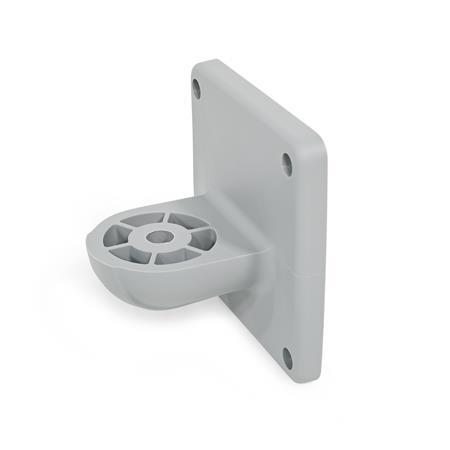

 LSF.P Swivel clamps, plastic Type: AV - With external serration
Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
x<sub>1</sub>: 40
 LSF.P Swivel clamps, plastic Type: AV - With external serration
Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
x<sub>1</sub>: 75

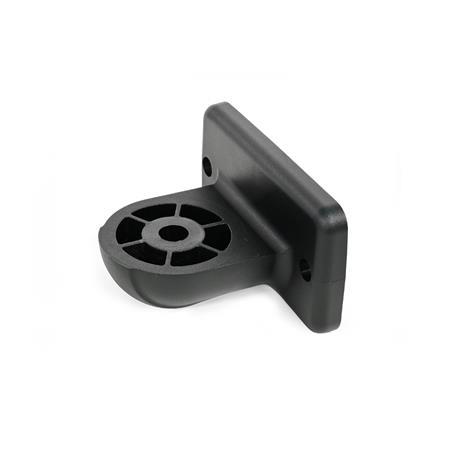

 LSF.P Swivel clamps, plastic Type: OZ - Without centring step (smooth)
Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
x<sub>1</sub>: 40
 LSF.P Swivel clamps, plastic Type: OZ - Without centring step (smooth)
Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
x<sub>1</sub>: 75
 LSF.P Swivel clamps, plastic Type: OZ - Without centring step (smooth)
Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
x<sub>1</sub>: 40
 LSF.P Swivel clamps, plastic Type: OZ - Without centring step (smooth)
Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
x<sub>1</sub>: 75
Article options / Table

Type

OZWithout centring step (smooth)
AVWith external serration
Show columns
b
Swivel width
x1d1d2Length lm1m2t1t2sx2y1y2
40408,56,5543320-813,5-7560
40758,56,5543337,530813,5607560
Build & Price
Swivel width b
x1
Type


Surface
Part number
LSF.P-40-40-OZ-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
