1B Tube clamps
TS.P T-clamps, plastic

TS.P T-clamps, plastic

Original design
code: TCC-TS / TCC-TS-VD
Product description

T-clamps TS.P of glass fiber reinforced polyamide have slitted clamping points.

The bores at the clamping points are situated in a plane and arranged in a T-shape. They receive typically available construction tubes with full surface contact over the entire cross-section of the bore.

Adapter bushings RBS.P can be used to reduce the bore cross-sections to a smaller diameter.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK.P, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

The plastic used in surface VB is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.

RoHS-compliant product

 TS.P T-clamps, plastic Surface: VB - Polyamide (PA), glass fiber reinforced, Blue RAL 5005 matt, temperature resistant up to 100 °C , FDA compliant plastic granulate, visually detectable, RAL 5005

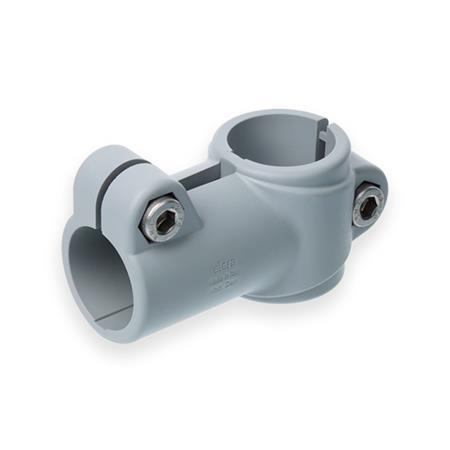

 TS.P T-clamps, plastic Surface: 2 - Polyamide (PA), glass fiber reinforced, Black matt, temperature resistant up to 100 °C, RAL 9005
 TS.P T-clamps, plastic Surface: 4 - Polyamide (PA), glass fiber reinforced, Gray matt, temperature resistant up to 100 °C, RAL 7040
Article options / Table

Screw points

2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
d2
Bore
k1
Clamping length
k2
Clamping length
l1l2l3mHex socket
cap screws
Accessories
recom. hand lever
HSK.P for z
lever length
l4
B 18B 182930,565342943,5M6-1844 | 63
B 30B 304445,596534464,5M8-2563 | 78
Build & Price
Bore d1
Bore d2
Clamping length k1
Screw points

Surface
Part number
TS.P-B18-B18-29-2-2
If there is no weight available, please contact our customer support:
phone: +49 (0)2226 - 90 98 7 - 0
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
