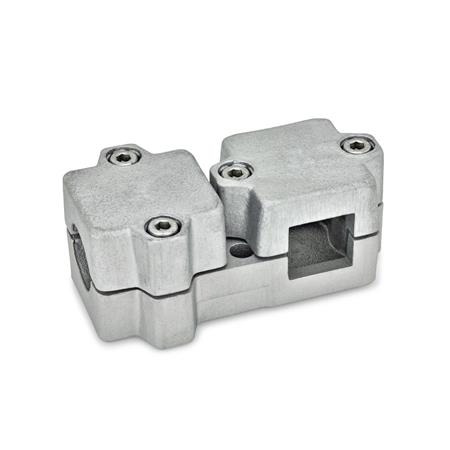

TM T-clamps, multi-piece, aluminum

TM T-clamps, multi-piece, aluminum

Product description

T-clamps TM of die-cast aluminum have split clamping points with identical round or square cross-section that have been partially machined by cutting methods.

The bores at the clamping points are situated in a plane and arranged in a T-shape. They receive typically available construction tubes via multiple ribs in the cross-section of the bores.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product

On request

  • Clamping points with different diameters d1, d2 , s1 and s2 or special diameters
  • Screw points with hex head screws or mixed screw / adjustable hand lever element
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 TM T-clamps, multi-piece, aluminum
 TM T-clamps, multi-piece, aluminum
 TM T-clamps, multi-piece, aluminum
 TM T-clamps, multi-piece, aluminum

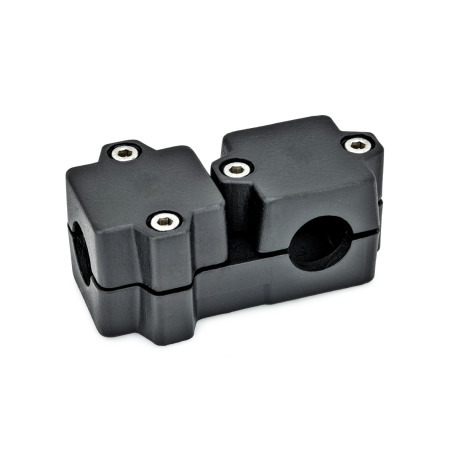

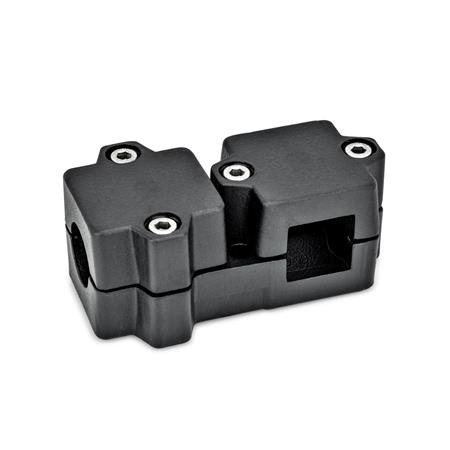

 TM T-clamps, multi-piece, aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore
d<sub>2</sub> / s<sub>2</sub>: B - Bore
Surface: 2 - Black, textured powder-coated, RAL 9005

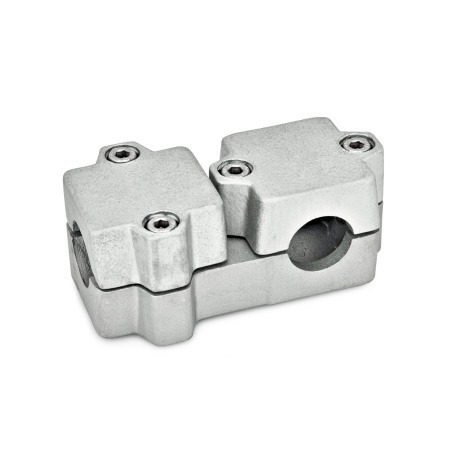

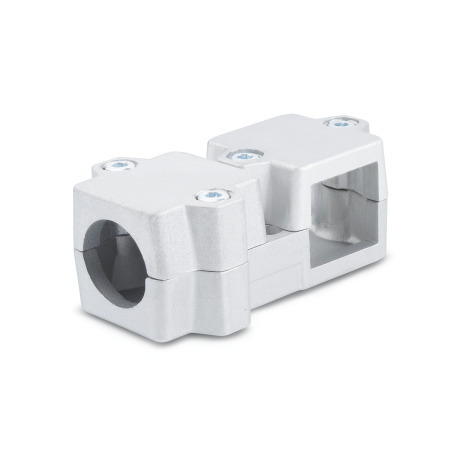

 TM T-clamps, multi-piece, aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore
d<sub>2</sub> / s<sub>2</sub>: B - Bore
Surface: 8 - Blasted, matt, blasted, matt

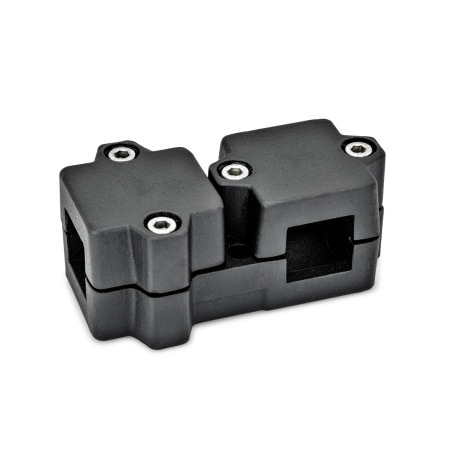

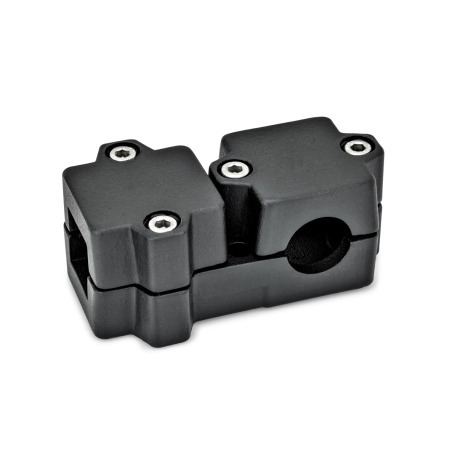

 TM T-clamps, multi-piece, aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square
d<sub>2</sub> / s<sub>2</sub>: V - Square
Surface: 2 - Black, textured powder-coated, RAL 9005

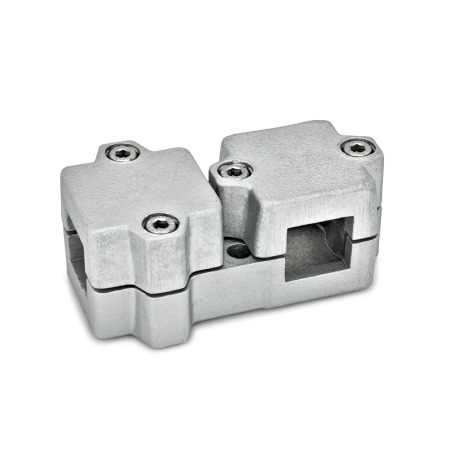

 TM T-clamps, multi-piece, aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square
d<sub>2</sub> / s<sub>2</sub>: V - Square
Surface: 8 - Blasted, matt, blasted, matt
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
d1
Bore
s1
Square
d2
Bore
s2
Square
k
Clamping
length
l1l2l3mHex socket
cap screws
Accessories
recom. hand lever
HSK for z
lever length
l4
B 20V 20B 20V 2050120684686M8-3578
B 25V 25B 25V 2550120684686M8-3578
B 30V 30B 30V 3050120684686M8-3578
B 30V 30B 30V 30601417959101,5M8-5078
B 32-B 32-601417959101,5M8-5078
B 35V 35B 35V 35601417959101,5M8-5078
B 40V 40B 40V 40601417959101,5M8-5078
B 40V 40B 40V 40761769870127M10-6092
B 42-B 42-761769870127M10-6092
B 45V 45B 45V 45761769870127M10-6092
B 48-B 48-761769870127M10-6092
B 50V 50B 50V 50761769870127M10-6092
Build & Price
Bore d1
Square s1
Bore d2
Square s2
Clamping length k
Screw points


Surface
Part number
TM-B20-B20-50-2-8
