Product description

Angle clamps WMD of die-cast aluminum have split clamping points with identical round or square cross-section that have been partially machined by cutting methods.

The bores at the clamping points are situated in a plane and arranged in a double T-shape. They receive typically available construction tubes via multiple ribs in the cross-section of the bores.

At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping.

Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.

RoHS-compliant product


  • Adjustable hand levers HSK

On request

  • Clamping points with special diameter
  • Screw points with hex head screws or mixed screw / adjustable hand lever element
  • Surface ball-burnished, anodized or powder-coated in other RAL colors
 WMD Angle clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 8 - blasted, matt
 WMD Angle clamps, multi-piece, aluminum d<sub>1</sub> / s: B - Bore
Surface: 2 - Black, textured powder-coated, RAL 9005

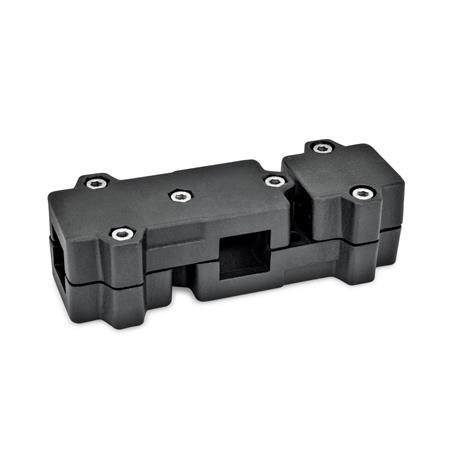

 WMD Angle clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 2 - Black, textured powder-coated, RAL 9005

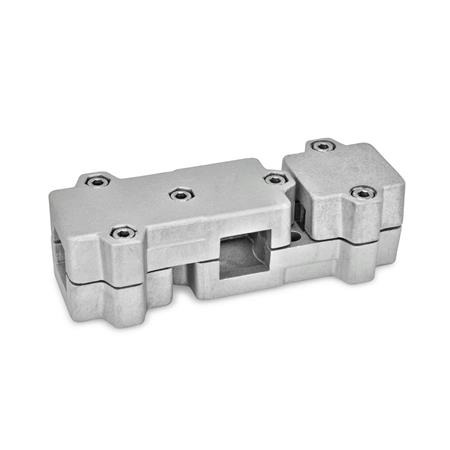

 WMD Angle clamps, multi-piece, aluminum d<sub>1</sub> / s: V - Square
Surface: 8 - blasted, matt
Article options / Table

Screw points

1Hex socket cap screw steel, zinc-plated DIN 912-8.8 and lock nut steel DIN 985-8, zinc-plated
2Hex socket cap screw stainless steel DIN 912-A2-70 and lock nut stainless steel DIN 985-A2, glide coating
Show columns
l1l2l3mHex socket
cap screws
recom. hand lever
HSK for z
lever length
B 20V 2050172684686M8-3578
B 25V 2550172684686M8-3578
B 30V 3050172684686M8-3578
B 30V 30602037959101,5M8-5078
B 32-602037959101,5M8-5078
B 35V 35602037959101,5M8-5078
B 40V 40602037959101,5M8-5078
B 40V 40762549870127M10-6092
B 42-762549870127M10-6092
B 45V 45762549870127M10-6092
B 48-762549870127M10-6092
B 50V 50762549870127M10-6092
